Switch Always On - AC
Unprecedented Remote Power Control for Diverse Applications.
Robust Features for Maximum Uptime.

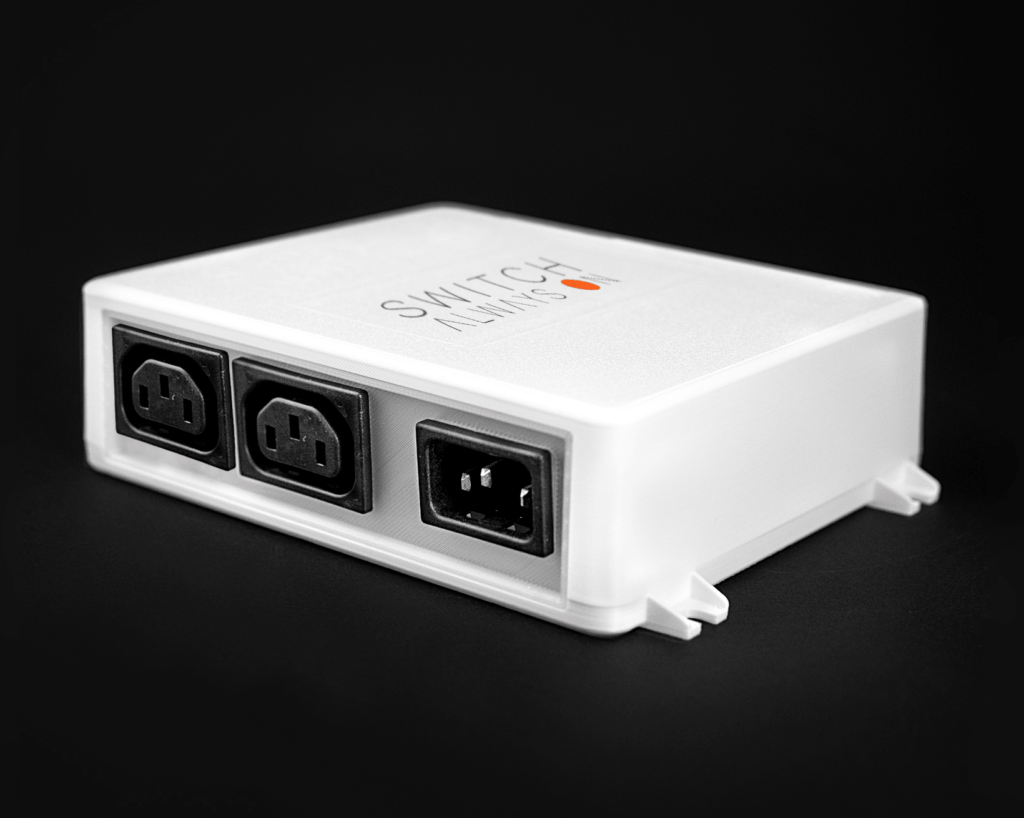

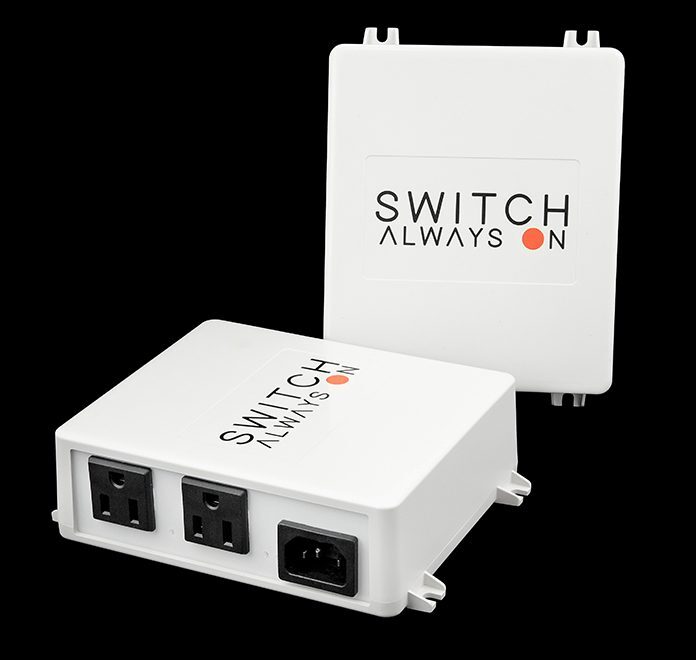

Introducing the SAO AC, designed to provide remote and reliable power control solutions for digital signs, unattended self-service kiosks, vending machines, and more. Equipped with integrated AC outlets and integrated backup cell connectivity, the SAO AC provides unprecedented remote power control and reboot of your equipment.
Dual AC Ports
Dual AC ports offer unmatched convenience and flexibility, allowing you to power multiple devices simultaneously. This feature simplifies your setup, reduces the need for extra power strips, and ensures efficient, reliable operation for all your equipment.
Dual Ethernet Ports
Simplify your network setup and seamlessly leverage internet connections without the need for additional hubs or switches.
Back-up Cell Connectivity
Maintain continuous operation and receive real-time alerts with our optional 4G backup cell card. Instantly get heartbeat alerts during any network device malfunctions, keeping you informed and connected.
Internal Backup Battery
Provides up to 2 hours of backup battery power for cell modems, routers, and other essential networking equipment, ensuring continuous connectivity during power outages.
Cloud Integration
Monitor and manage the operation of the Switch Always On via the mobile and/or web cloud app and receive alerts and notifications of equipment hangs and auto-reboot events.
Explore Our AC Model
- DOUBLE AC PORTS
- DUAL ETHERNET PORT
- INNER BACKUP BATTERY
- OPTIONAL CELL CARD
- DOUBLE AC PORTS
- DUAL ETHERNET PORT
- INNER BACKUP BATTERY
- OPTIONAL CELL CARD
Switch AC Specifications:
INPUT AC RATINGS
Input Voltage Rating:
110VAC-240VAC, 50/60Hz
Input Current Rating:
30A Max
OUTPUT AC RATINGS
# of AC Outlets:
2 Individually Controlled Outlets
AC Outlet Voltage Ratings:
110VAC – 220VAC
AC Outlet Current Ratings:
15A per port
OUTPUT RATINGS - DRY CONTACTS
# of Dry Contacts Outlets:
2 - Outlets individually controlled
INTERNAL BACKUP BATTERY
Battery Chemistry:
Li-Polymer Battery
Nominal Battery Voltage / Capacity:
~3.7V / 3200mAh (UL)
UL/cUL:
UL1642, IEC62133(CB)
CONNECTIVITY/CLOUD
Wired:
Dual Ethernet 10/100 Mbps
Wireless:
Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Cloud Connectivity:
3-Year Cloud Access & Alerts
SAFETY COMPLIANCE
UL/cUL:
DTM UL 60950-1 Information Technology Equipment Safety
FCC:
DTM FCC Title 47 CFR 15 Subpart B Emissions Class A
CE:
DTM CE
ROHS:
Compliant
MECHANICAL
Form Factor:
Ultra-Compact
WxDxH:
5.0” x 5.5” x 1.5”
Weight:
~1 lbs
SEAMLESS
POWER.
Stay Informed with Smart Alerts.
Ensure your equipment never misses a beat with the SAO AC’s smart management capabilities. Receive real-time alerts for AC power loss and recovery, and manage your device settings remotely to adapt to any situation swiftly.
Custom Power Reboot Solutions for Every Sector.
Whether powering an ATM network or ensuring uptime for digital billboards, the Switch Always On Solutions are tailored to meet the specific needs of your industry. Discover how our customers are using the Switch Always On Solutions to enhance their operations today!
