Automatically Hard Reboot
Cell Modems, Cable Modems
& WiFi Routers Hangs
Contact Us
How Switch Always OnTM works?
Switch Always OnTM recovers the network connectivity issues in
two different ways.
Prevents Power
Disruptions
Network
Connectivity
Keep your things connected with Switch Always OnTM.
Switch Always On TM Users & Applications
Integrated Smart Features
Power & Auto-Reboot Up to Four Devices
Multi-Output DC Ports With Auto/Remote Power Cycling
Built-In Power Backup Battery
Backup the power of cell modem, cable modem, and/or WiFi router for up to two hours when unplanned power outages occur

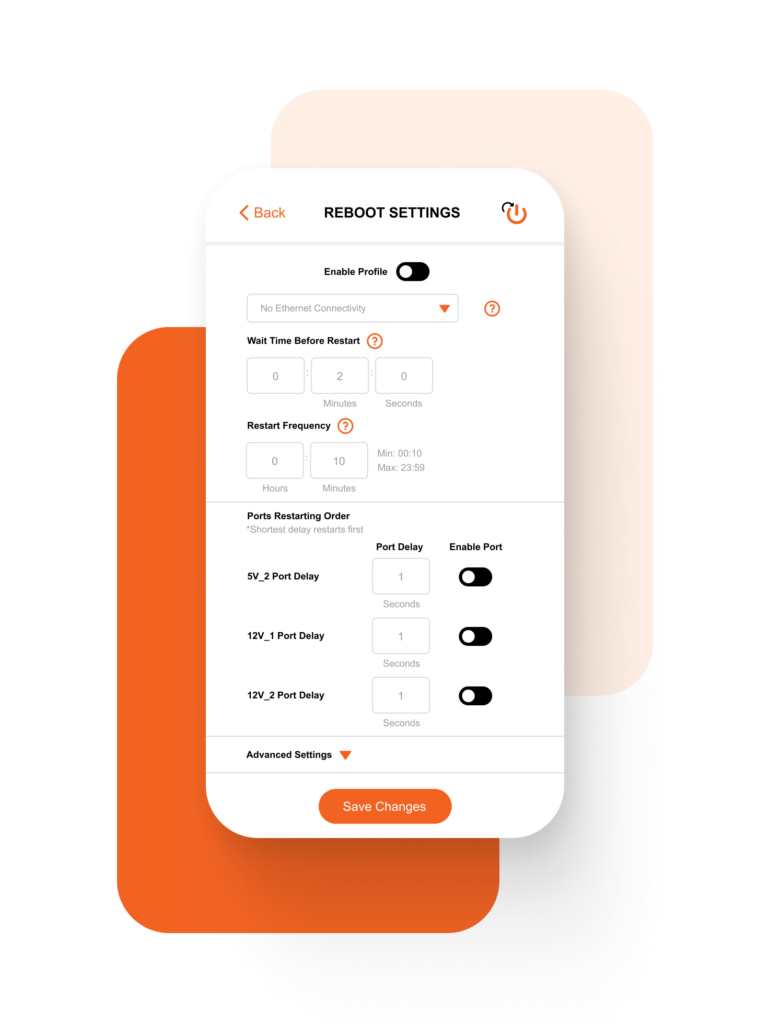

Remote Management Technology
Proactively monitor the connectivity and availability of cell modem, cable modem, and/or WiFi router and reboot the equipment remotely

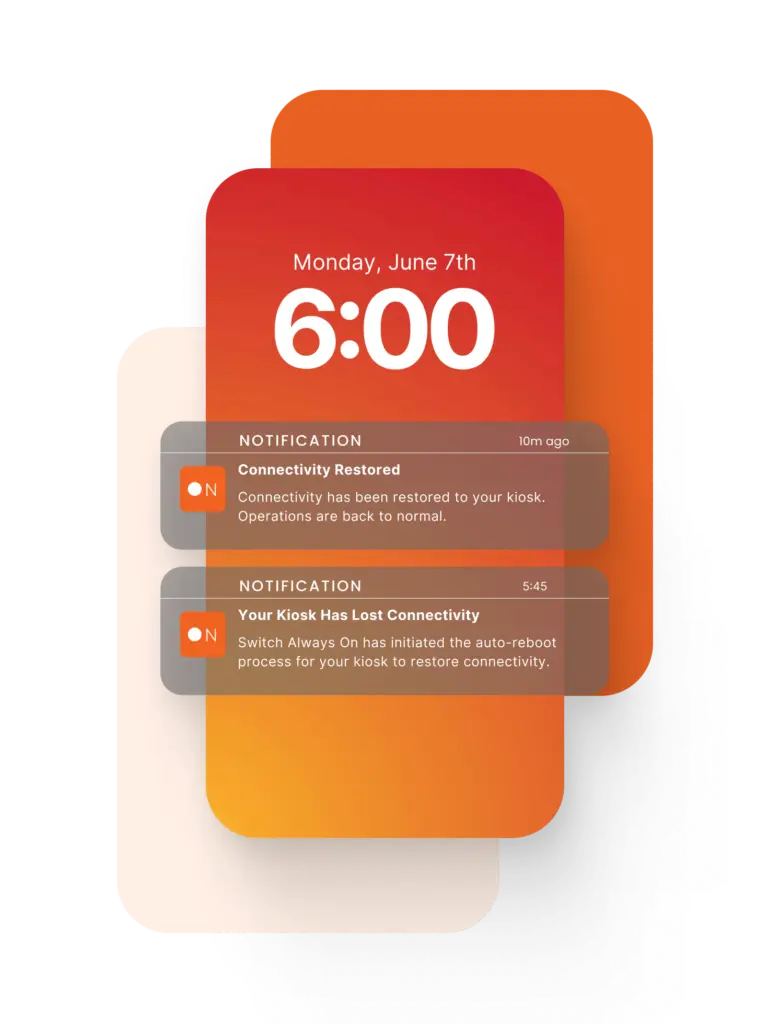

Real-Time Updates and Alerts
Receive alerts and notifications when cell modem, cable modem, and/or WiFi router is hung, power-cycled, and back online
Product Specifications
- Model SWITCH-12-5-22
- AC Power 120VAC - 240VAC, 50/60Hz, 1.2A
- VA Rating 125VA
- Output Power 65W
- Efficiency >90% @ ½ load
- Ports Two 12V @ 1.5A (2.5A MAX), Two 5V @ 3.5A (3.5A MAX)
- Battery Size 14.8V | ~2600mAh (37Whrs) Lithium-ion Battery
-
Backup Time
~2 Hours @ 50% load
~1 Hour @ 100% load -
Connectivity
Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Ethernet 10/100 Mbps - Weight ~2lb
- Size 4.8" x 6.5" x 1.7"
Input
- VA Rating 125VA
-
Input Power
Minimum (no load): 0.85W
Maximum (max load): 75W - Input AC Voltage 120VAC - 240VAC, 50/60Hz, 1.2A
- Internal Fuse Ratings 3.15A / 250V
- Voltage Protection TMOV / Varistor, 314V / 6kA
Output
- Max Output Power 50W
-
Output Voltages
2 x 12V @ 3A
2 x 5V @5A -
Output Currents
+12V: 1.5A nominal, 2.5A max
+5V: 2.5A nominal, 3.5A max -
Short Circuit Rating
+12V: <3A
+5V: <4A - Efficiency >90% @ ½ load
Battery
- Battery Chemistry 4S1P Li-ion Battery
- Nominal Battery Voltage ~14.8V
- Capacity ~2600 mAh
- Operating Temperature 0oC – 50oC
-
Backup Time
~2 Hours @ 50% load
~1 Hour @ 100% load
Environmental
- Operating Temperature 0oC – 50oC
- Storage 0oC – 50oC
- Humidity 0 to 95% RH, non-condensing
Connectivity
- Wired Ethernet 10/100 Mbps
- Wireless Wi-Fi IEEE 802.11 b/g/n, 2.4GHz
Mechanical
- WxDxH 4.8" x 6.5" x 1.7"
- Weight ~2lb
Compliance
- UL/cUL UL 60950-1 “Information Technology Equipment Safety”
- FCC FCC Title 47 CFR 15 Subpart B Emissions Class A
- CE CE listed
- ROHS Compliant
Get in touch with us.
Get product information, confirm product compatibility, order a demo, or purchase Switch Always OnTM.
