Switch Always On - DC
Unleash Reliable Power.
Advanced Features for Optimal Performance.

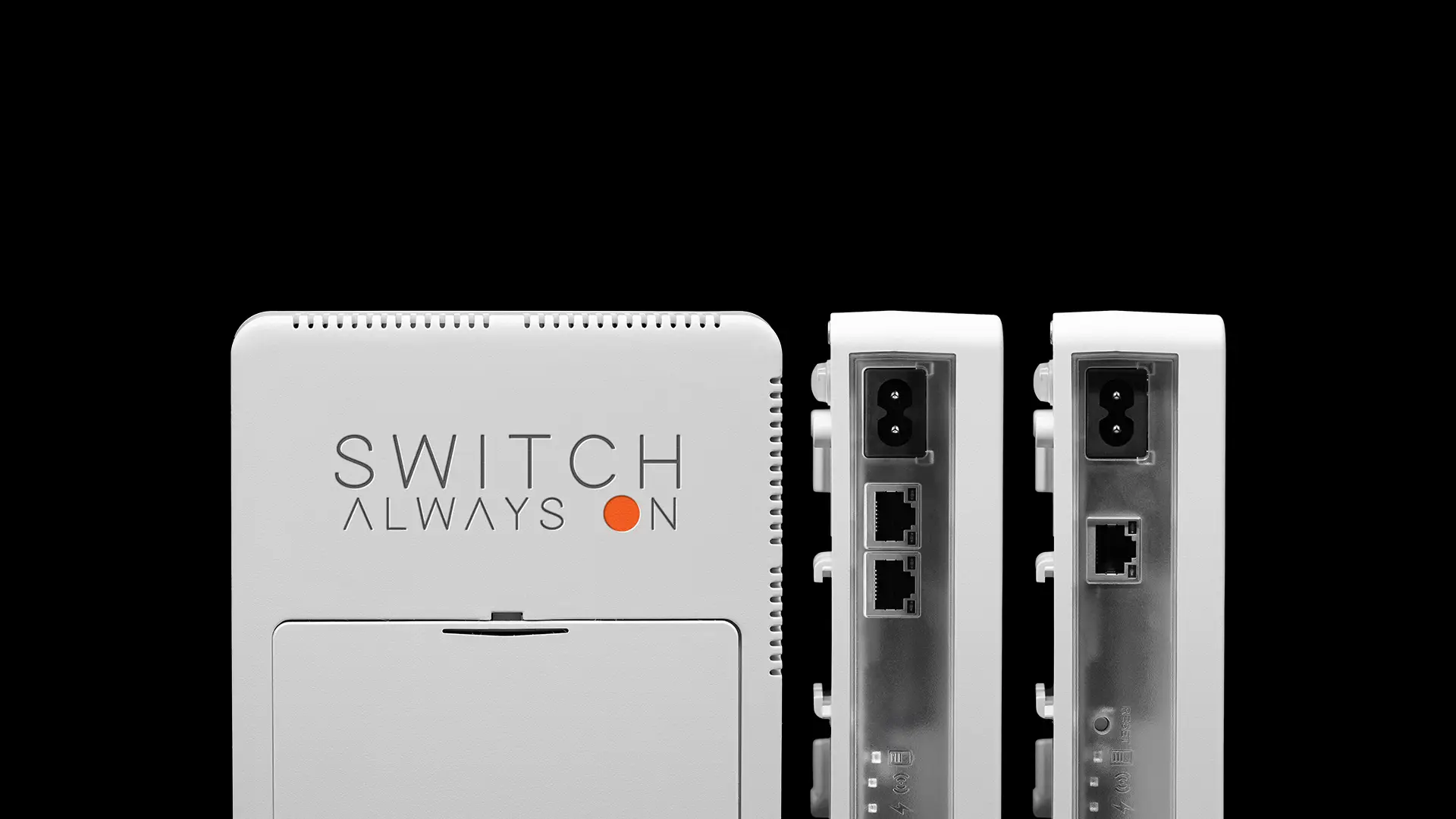

Introducing the Switch Always On DC, the ultimate solution for uninterrupted power supply tailored for specialty kiosks, vending machines, ATMs, and digital signage. Engineered to maximize uptime and ensure consistent operation, the SAO DC seamlessly integrates advanced technology with user-friendly features.
Auto-Reboot
Automatically restarts connected devices if they become unresponsive or after a power outage. This ensures continuous operation without the need for manual intervention, improving overall system reliability.
Remote Reboot
Enables remote rebooting of equipment via the Switch Always On remote management app. This capability helps recover and improve uptime without the need for physical presence, thereby reducing travel costs and minimizing downtime.
Backup Battery
Provides up to 2 hours of backup battery power for cell modems, routers, and other essential networking equipment, ensuring continuous connectivity during power outages.
Outlet Configuration
Allows each outlet to be individually configured and scheduled for reboots. This customization provides flexibility in managing the power supply to different devices based on specific needs and maintenance requirements.
DC Outlet Protection
Protects connected devices from voltage spikes, overcurrent, and other electrical anomalies. This feature safeguards sensitive equipment from damage, ensuring their longevity and consistent performance.
Cloud Integration

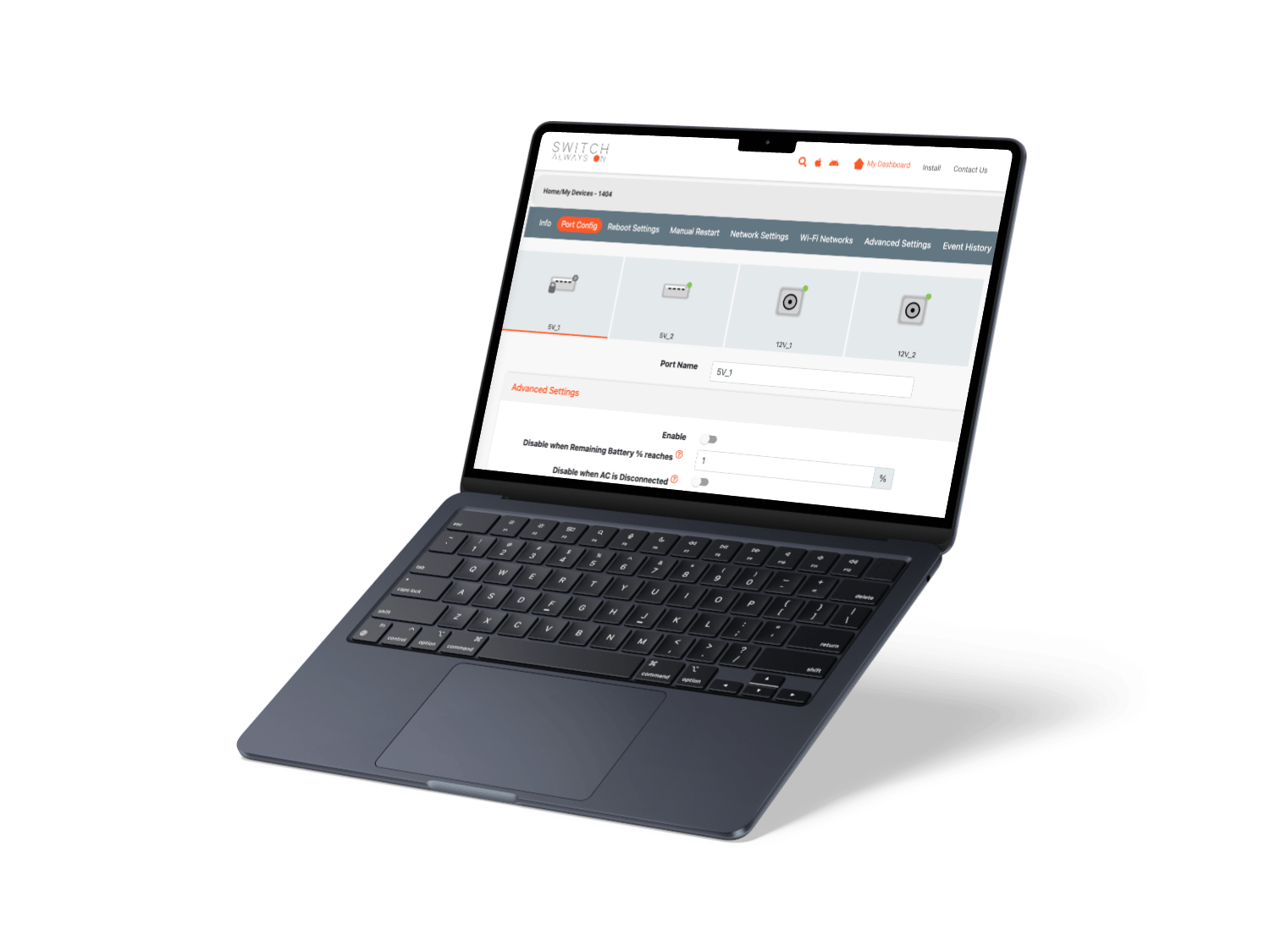

Monitor and manage the operation of the Switch Always On via the mobile and/or web cloud app and receive alerts and notifications of equipment hangs and auto-reboot events.
Explore Our DC Models.

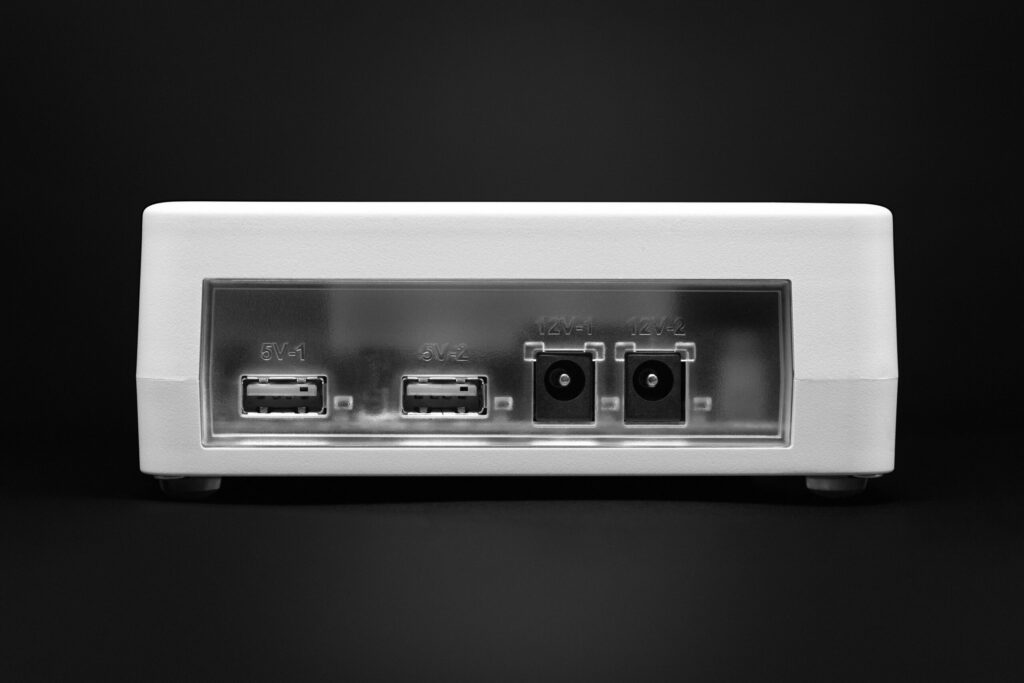

- (2) 5V DC PORTS
- (2) 12V DC PORTS

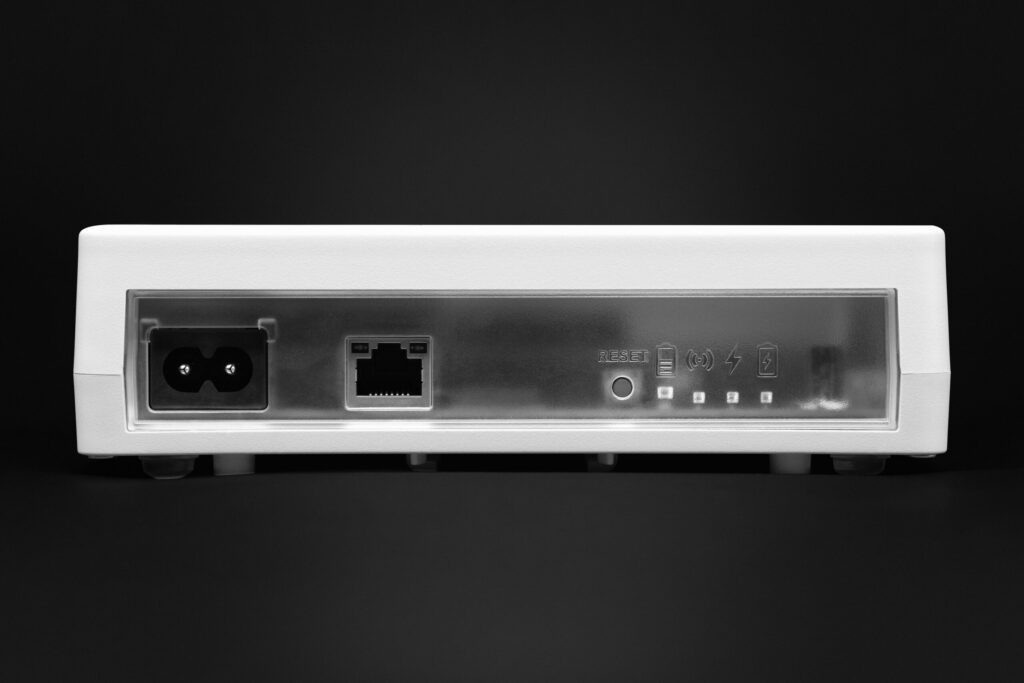

- ETHERNET PORT
- BACKUP BATTERY
- (2) 5V DC PORTS
- (2) 12V DC PORTS
- ETHERNET PORT
- BACKUP BATTERY
Switch DC Hub Specifications:
INPUT AC RATINGS
Input Voltage Rating:
110VAC-240VAC, 50/60Hz, 1.1A
Input VA Rating:
125VA
Input Voltage Surge Protection:
TMOV / Varistor, 300V / 6kA / 125J
OUTPUT DC RATINGS
Max Output Power:
65W
# of DC Outlets:
4 Individually Controlled Outlets
DC Outlet Voltage Ratings:
2@+12V / 2@+5V
DC Outlet Current Ratings:
+12V > 1.5A nominal, 2.5A max +5V > 2.5A nominal, 3.5A max
OUTPUT AC RATINGS WITH ACCESSORIES
# of AC Outlets:
1 or 2 with AC power plug or AC power switch - Outlets individually controlled
AC Outlet Voltage Ratings:
110VAC – 220VAC
AC Outlet Current Ratings:
15A
BACKUP BATTERY
Battery Chemistry:
4S1P Li-Ion Battery
Nominal Battery Voltage / Capacity:
~14.8V / 2600mAh
Backup Time:
~2 hours @50% load/ ~ 10 hour @20% load
CONNECTIVITY/CLOUD
Wired:
Ethernet 10/100 Mbps
Wireless:
Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Cloud Connectivity:
3-Year Cloud Access & Alerts
SAFETY COMPLIANCE
UL/cUL:
UL Listed (60950-1 Information Technology Equipment Safety)
FCC:
FCC Title 47 CFR 15 Subpart B Emissions Class A
CE:
CE listed
ROHS:
Compliant
MECHANICAL
Form Factor:
Ultra-Compact
WxDxH:
4.8” x 6.5” x 1.7”
Weight:
~2 lbs
MAXIMIZE
UPTIME.
- SINGLE CONFIGURABLE DC PORT
- DUAL ETHERNET PORT
- INNER BACKUP BATTERY
- OPTIONAL CELL CARD
- SINGLE CONFIGURABLE DC PORT
- DUAL ETHERNET PORT
- INNER BACKUP BATTERY
- OPTIONAL CELL CARD
Switch DC Specifications:
INPUT AC RATINGS
Input Voltage Rating:
110VAC-240VAC, 50/60Hz, 0.5A
Input VA Rating:
50VA
Input Voltage Surge Protection:
TMOV / Varistor, 300V / 6kA / 125J
OUTPUT DC RATINGS
Max Output Power:
45W
# of DC Outlets:
1 Configurable Outlet
DC Outlet Voltage Ratings:
Programmable: 5V/12V/15V/19V/24V/48V
DC Outlet Current Ratings:
5A max @ 5V
3A max @ 15V
2A max @ 24V
1A max @ 48V
OUTPUT RATINGS - POE+
# of Dry POE+ Outlets:
1
Max Power:
30W @ 48V
OUTPUT RATINGS - Dry Contacts
# of Dry Contacts:
1
BACKUP BATTERY
Battery Chemistry:
2S1P Li-Ion Battery
Nominal Battery Voltage / Capacity:
~2 x 3.7V / 2600mAh
UL/cUL:
UL 2054, IEC62133(CB), CE, KC, UN38.3 listed
Backup Time:
~2 hours @50% load/ ~ 10 hour @20% load
CONNECTIVITY/CLOUD
Wired:
Dual Ethernet 10/100 Mbps
Wireless:
Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Backup Cell:
LTE Cat 1
Cloud Connectivity:
3-Year Cloud Access & Alerts
SAFETY COMPLIANCE
UL/cUL:
DTM UL 60950-1 Information Technology Equipment Safety
FCC:
FCC Title 47 CFR 15 Subpart B Emissions Class A
CE:
DTM CE
ROHS:
Compliant
MECHANICAL
Form Factor:
Ultra-Compact
WxDxH:
5.0” x 5.5” x 1.5”
Weight:
~1.5lb
ALWAYS
CONNECTED.
Explore Our DC Models.

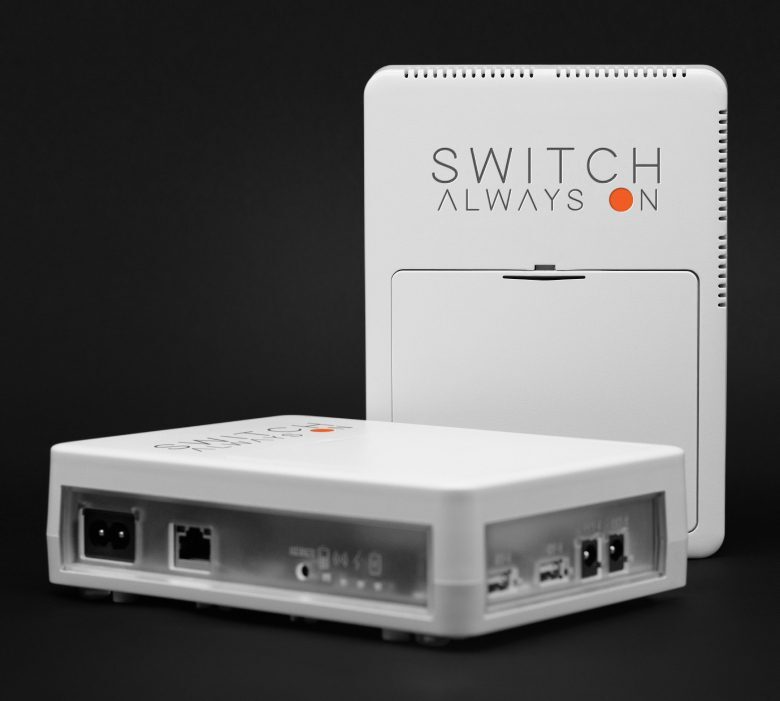

Switch DC Hub
- (2) 5V DC PORTS
- (2) 12V DC PORTS
- ETHERNET PORT
- BACKUP BATTERY
Switch DC Hub Specifications:
INPUT AC RATINGS
Input Voltage Rating:
110VAC-240VAC, 50/60Hz, 1.1A
Input VA Rating:
125VA
Input Voltage Surge Protection:
TMOV / Varistor, 300V / 6kA / 125J
OUTPUT DC RATINGS
Max Output Power:
65W
# of DC Outlets:
4 Individually Controlled Outlets
DC Outlet Voltage Ratings:
2@+12V / 2@+5V
DC Outlet Current Ratings:
+12V > 1.5A nominal, 2.5A max +5V > 2.5A nominal, 3.5A max
OUTPUT AC RATINGS WITH ACCESSORIES
# of AC Outlets:
1 or 2 with AC power plug or AC power switch - Outlets individually controlled
AC Outlet Voltage Ratings:
110VAC – 220VAC
AC Outlet Current Ratings:
15A
BACKUP BATTERY
Battery Chemistry:
4S1P Li-Ion Battery
Nominal Battery Voltage / Capacity:
~14.8V / 2600mAh
Backup Time:
~2 hours @50% load/ ~ 10 hour @20% load
CONNECTIVITY/CLOUD
Wired:
Ethernet 10/100 Mbps
Wireless:
Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Cloud Connectivity:
3-Year Cloud Access & Alerts
SAFETY COMPLIANCE
UL/cUL:
UL Listed (60950-1 Information Technology Equipment Safety)
FCC:
FCC Title 47 CFR 15 Subpart B Emissions Class A
CE:
CE listed
ROHS:
Compliant
MECHANICAL
Form Factor:
Ultra-Compact
WxDxH:
4.8” x 6.5” x 1.7”
Weight:
~2 lbs
MAXIMIZE
UPTIME.

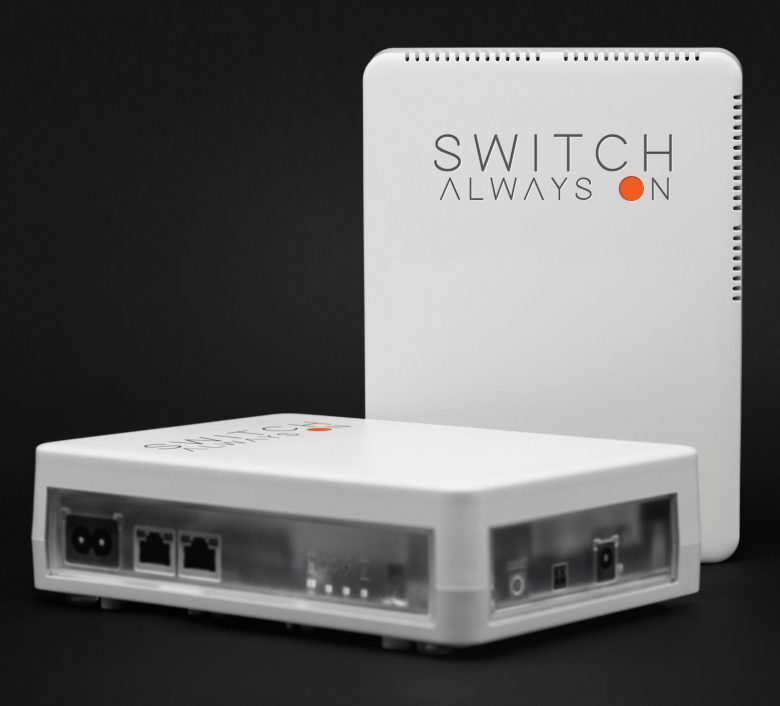

Switch DC
- SINGLE CONFIGURABLE DC PORT
- DUAL ETHERNET PORT
- INNER BACKUP BATTERY
- OPTIONAL CELL CARD
Switch DC Specifications:
INPUT AC RATINGS
OUTPUT DC RATINGS
OUTPUT RATINGS - POE+
OUTPUT RATINGS - Dry Contacts
BACKUP BATTERY
CONNECTIVITY/CLOUD
SAFETY COMPLIANCE
MECHANICAL
ALWAYS
CONNECTED.

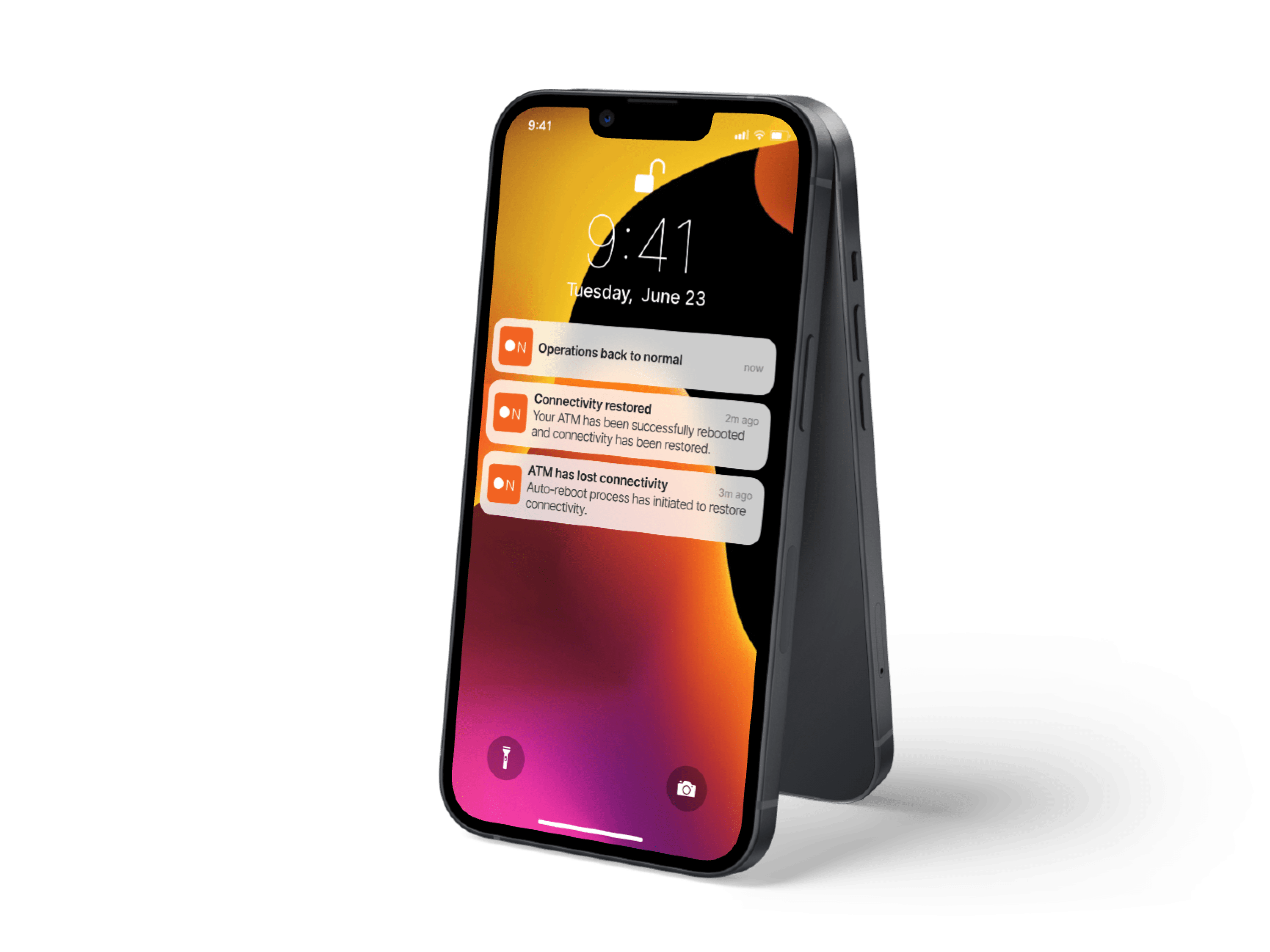

Stay Connected with Real-Time Cloud Management
Stay ahead of potential issues with real-time alerts and remote management via our dedicated mobile app. The SAO DC4 provides comprehensive monitoring tools that keep you informed and ready to react at a moment’s notice.
Custom Power Reboot Solutions for Every Sector.
Whether powering an ATM network or ensuring uptime for digital billboards, the Switch Always On Solutions are tailored to meet the specific needs of your industry. Discover how our customers are using the Switch Always On Solutions to enhance their operations today!
